最新EFD磁芯 淘宝购买链接：1771.taobao.com/category-736421601.htm

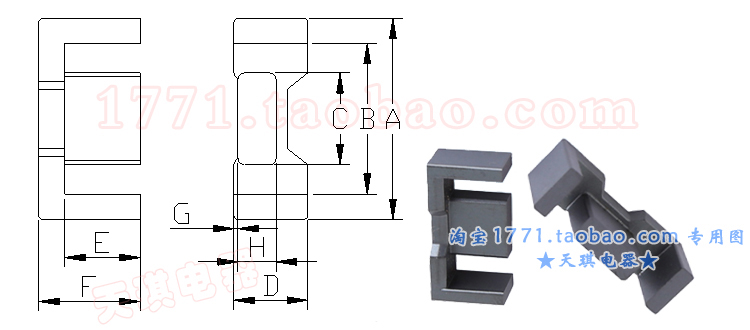

| 型号 | 毛重 | 尺寸(mm) | |||||||
| A | B | C | D | E | F | G | H | ||
| EFD20 | 9 | 20.0±0.6 | 15.4±0.5 | 8.9±0.2 | 6.7±0.2 | 7.7±0.3 | 10.0±0.3 | 0.2±0.1 | 3.6±0.2 |
| EFD21A | 9 | 20.8±0.6 | 15.4min | 8.9±0.2 | 6.7±0.2 | 7.7±0.3 | 10.0±0.3 | 0.2±0.1 | 3.6±0.2 |
| EFD21B | 9.7 | 21.0±0.5 | 15.4min | 8.9±0.2 | 6.7±0.2 | 8.0±0.3 | 10.3±0.3 | \ | 3.6±0.2 |
| EFD25.6 | 19 | 25.6±0.7 | 19.5±0.7 | 11.4±0.3 | 9.1±0.3 | 9.3±0.3 | 12.5±0.3 | 0.6±0.1 | 5.2±0.3 |
| EFD31 | 25 | 30.8±0.8 | 23.2min | 14.4±0.3 | 8.8±0.2 | 11.2±0.3 | 15.0±0.3 | 0.3±0.2 | 4.8±0.2 |
| EFD34 | 29.6 | 34.0±0.6 | 24.0±0.5 | 17.0±0.3 | 5.0±0.2 | 18.0±0.3 | 23.0±0.3 | \ | 3.0±0.2 |
| EFD40/45/11 | 60 | 40.5±0.7 | 30.0min | 16.6±0.3 | 10.6±0.2 | 16.3±0.3 | 22.5±0.3 | \ | 6.6±0.2 |
| EFD40/44/8 | 44 | 40.0±0.7 | 29.5min | 19.9±0.4 | 8.0±0.2 | 17.1±0.3 | 22.0±0.3 | \ | 4.0±0.2 |
| EFD43/53/4.4 | 63.6 | 43.0±0.8 | 28.5min | 21.6±0.4 | 7.6±0.25 | 19.3±0.3 | 26.5±0.3 | \ | 4.4±0.25 |
| EFD43/44/3.2 | 49.2 | 43.4±0.8 | 33.5min | 22.3±0.4 | 8.0±0.25 | 17.1±0.3 | 22.2±0.3 | \ | 3.2±0.25 |
| EFD45/50 | 67 | 45.2±0.8 | 33.3±0.8 | 24.0±0.4 | 7.8±0.2 | 18.0±0.3 | 24.7±0.3 | \ | 4.0±0.2 |
| EFD52.5 | 118 | 52.5±1.1 | 39min | 22.5±0.4 | 13.0±0.3 | 19.9±0.3 | 27.0±0.3 | \ | 7.5±0.3 |
